Description

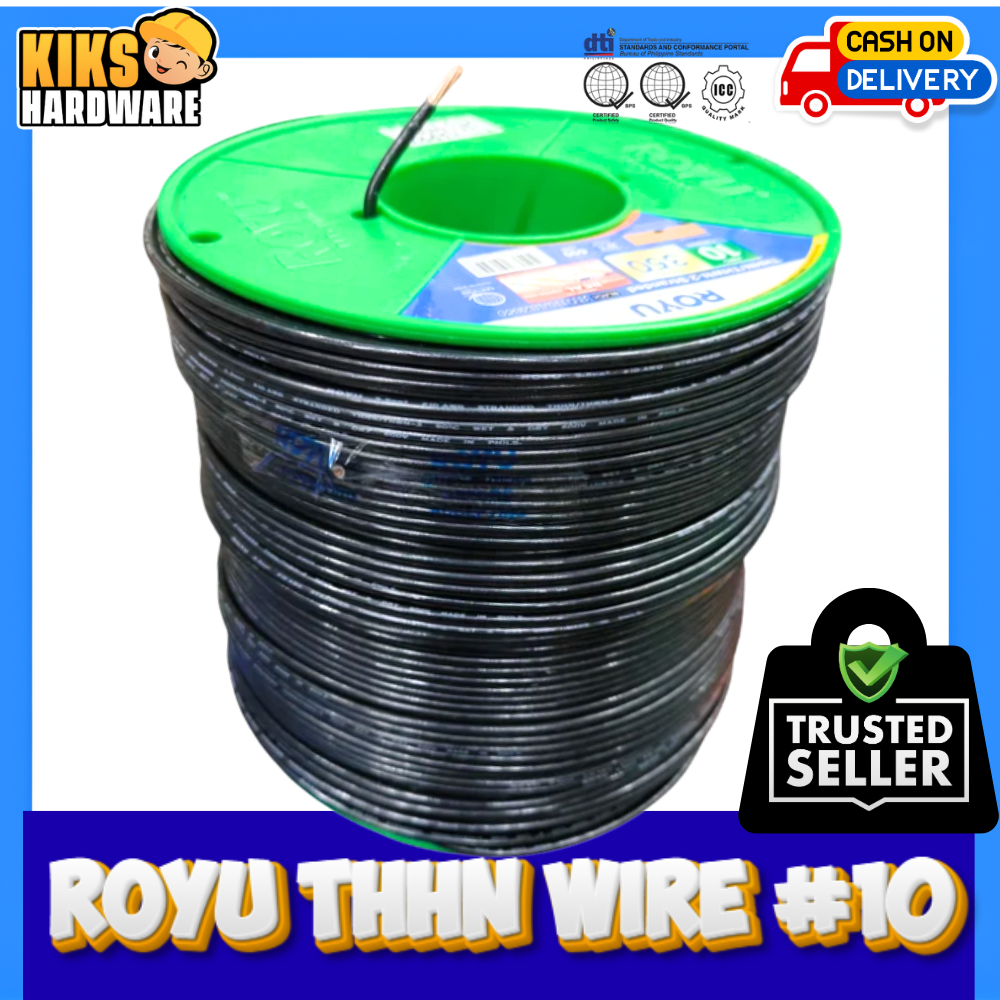

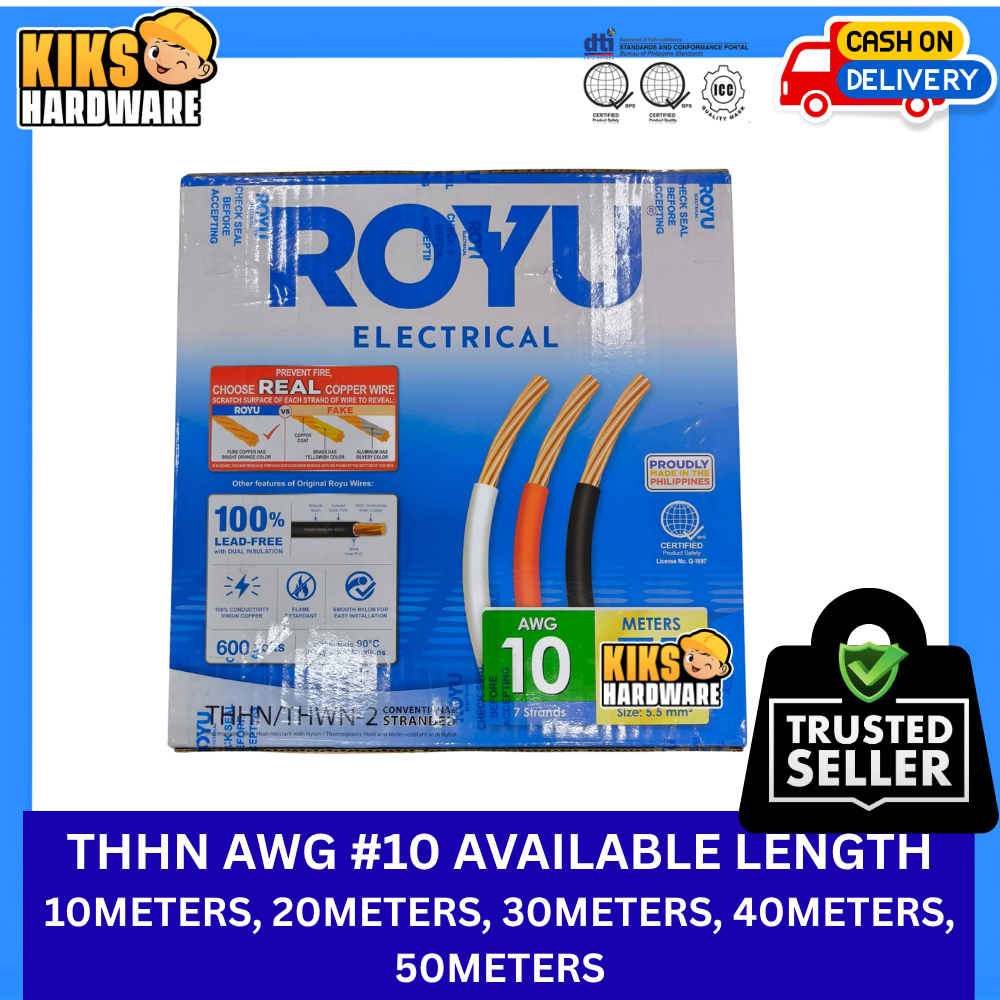

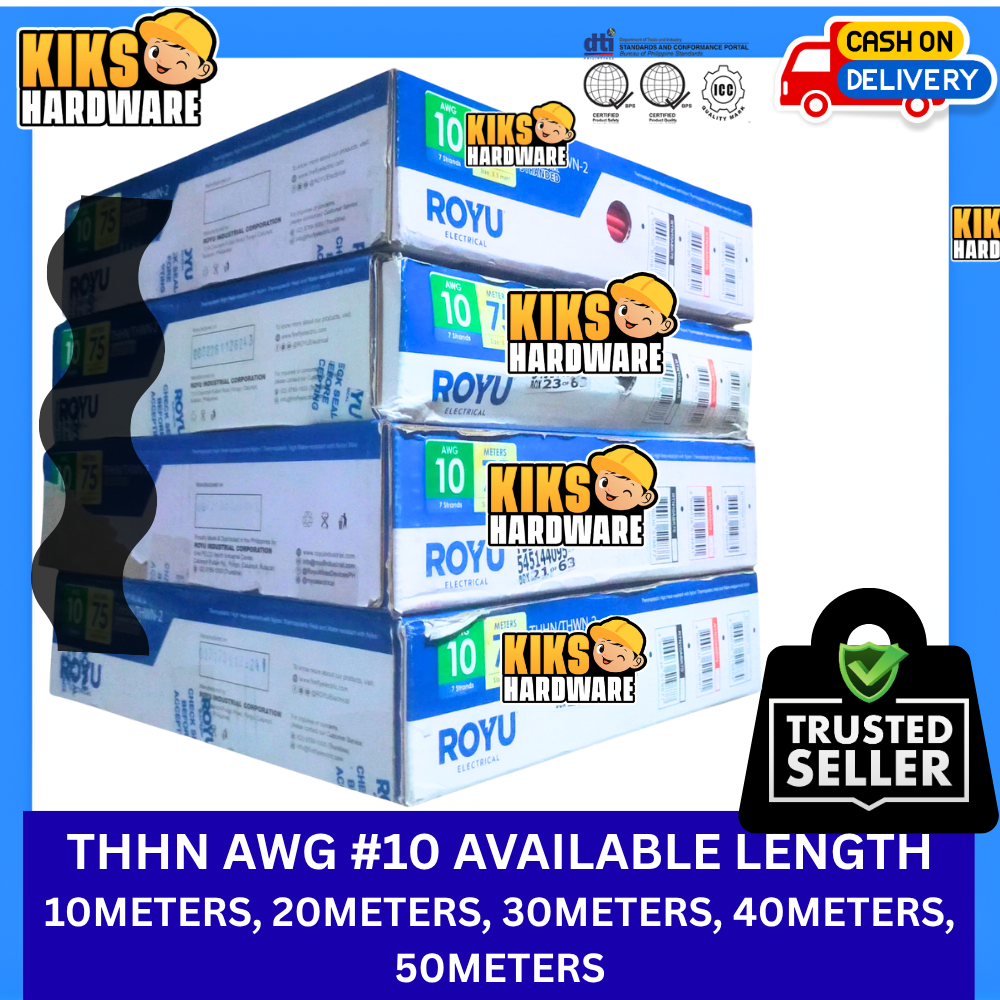

Royu AWG THHN #10 is a high-grade, 7-stranded electrical building wire manufactured by Royu (from the makers of Firefly Lighting) with a size equivalent to 5.5 mm².
SHIPPING NATIONWIDE CLICK THE BUTTON LINK BELOW!

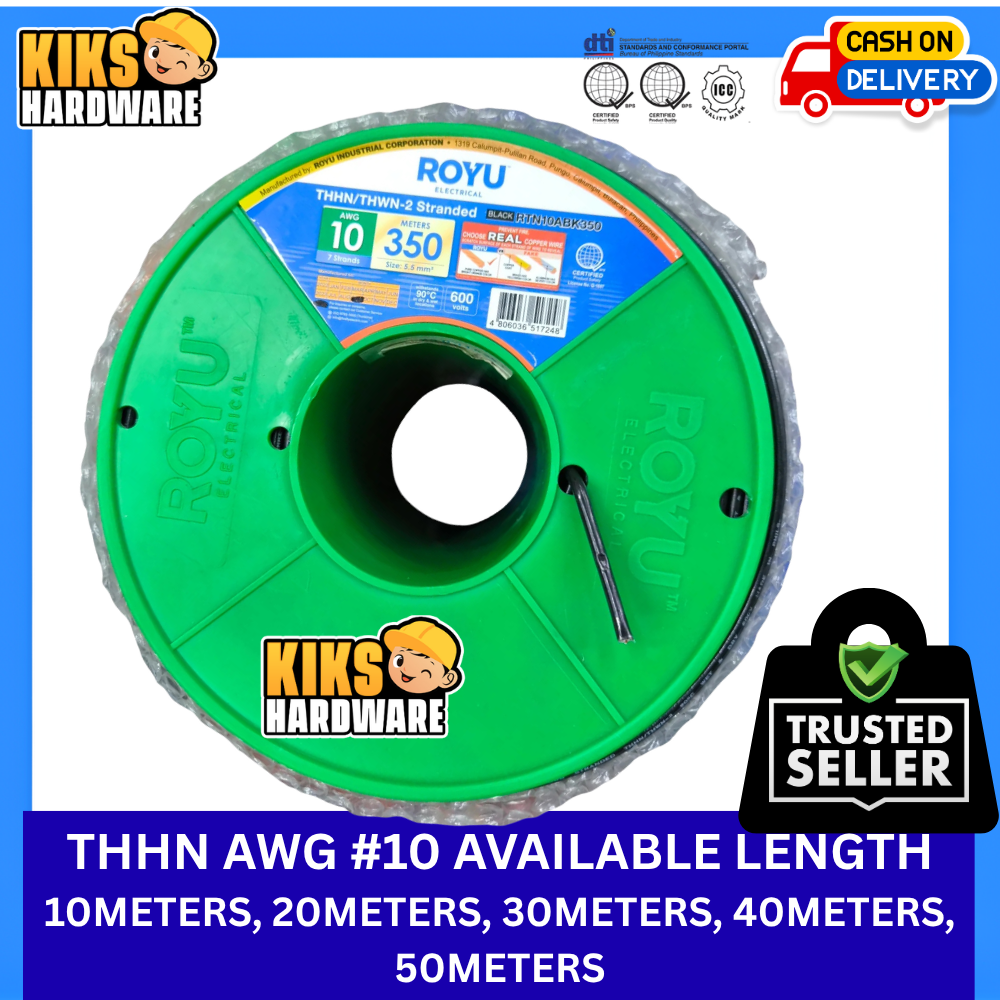

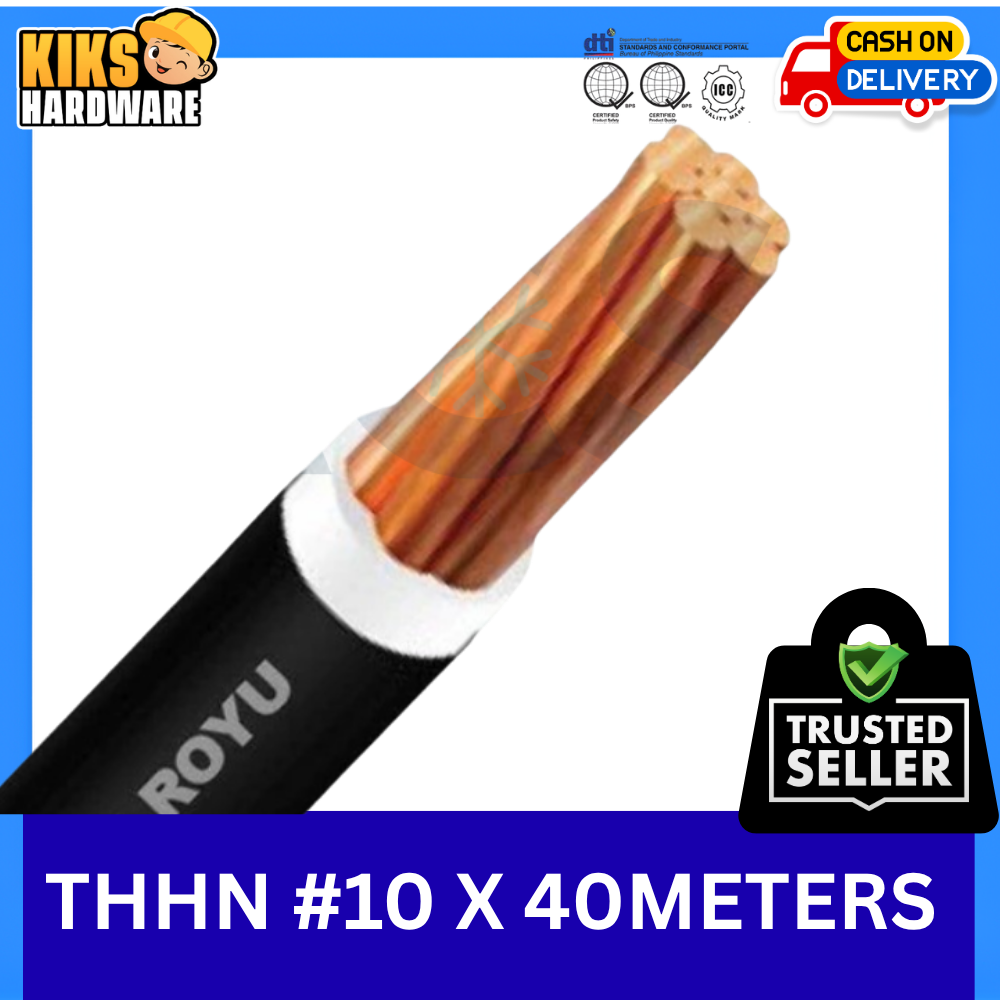

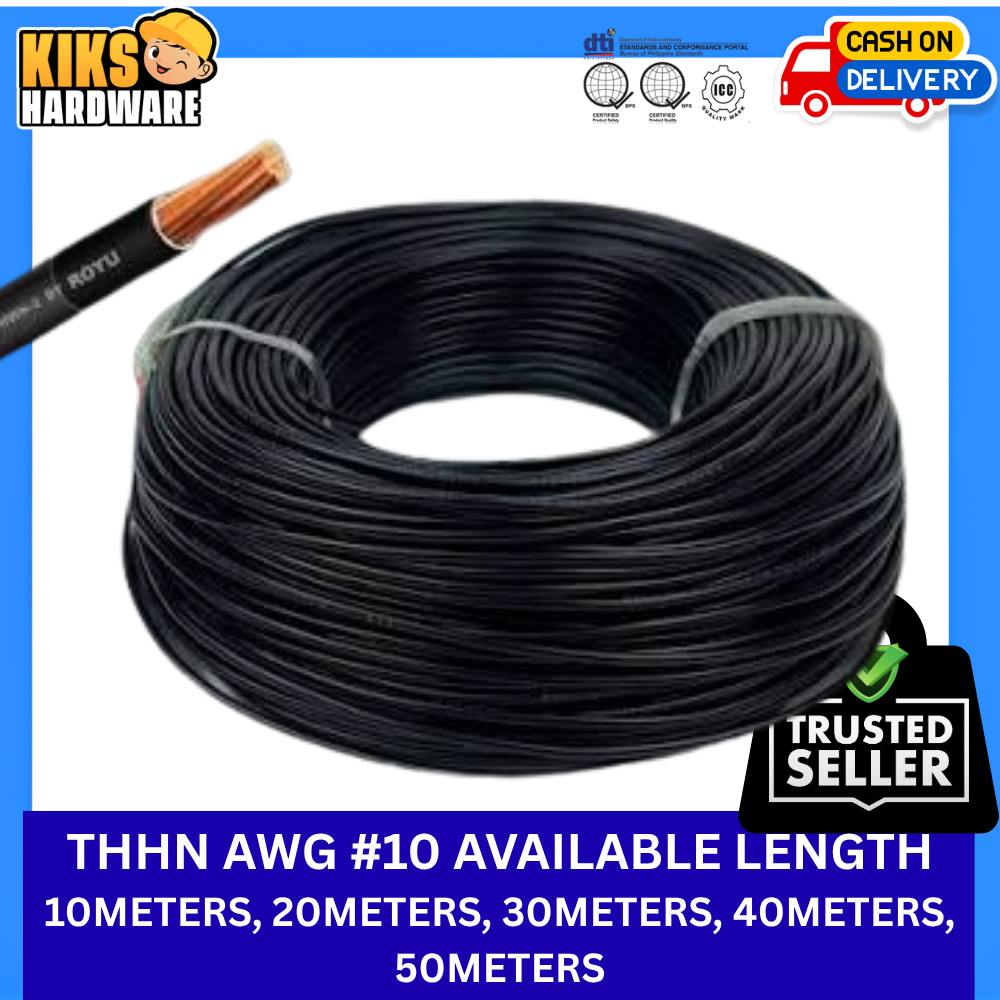

ROYU THHN/THWN AWG #10 SOLD PER LENGTH 10METERS, 20METERS, 30METERS, 40METERS, 50METERS
Royu AWG THHN #10 is a high-grade, 7-stranded electrical building wire manufactured by Royu (from the makers of Firefly Lighting) with a size equivalent to 5.5 mm².
Key Specifications

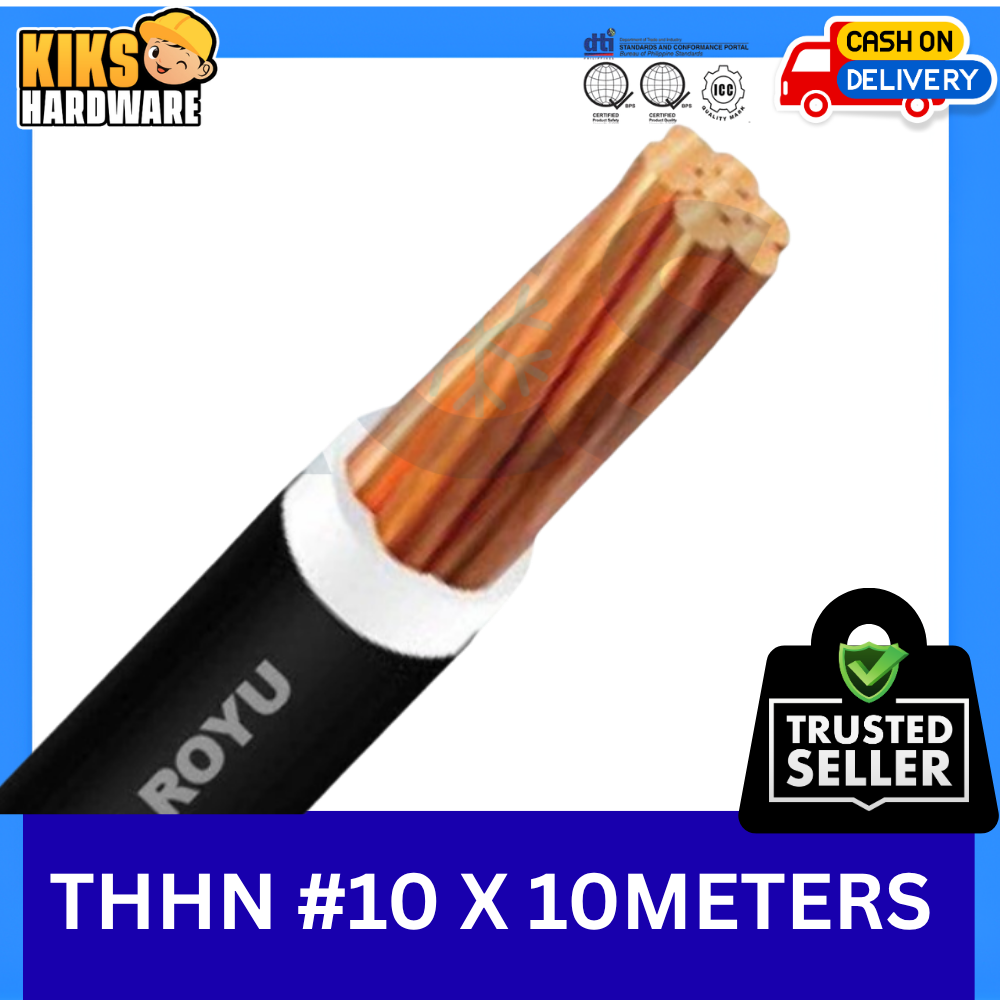

- Gauge & Size: 10 AWG (American Wire Gauge), which is equivalent to 5.5 mm² cross-sectional area.
- Conductor: 100% virgin copper with 7 strands for high conductivity and flexibility.
- Insulation: Lead-free dual insulation technology with a smooth, scratch-resistant nylon outer coating.
- Voltage & Temperature Rating: Rated for up to 600 volts and up to 90°C operating temperature in dry and wet locations (THHN/THWN-2).
- Ampacity: Rated up to 40–55 amps depending on terminal temperature rating and application standards.
- Flame Retardant: Designed to resist fire and ease conduit pulling during installation.
- Colors Available: Black, Red, White, Blue, Green, and Yellow.
Commercial Grade Certified
Direct Jobsite Flatbed Delivery
